Detailed Introduction of Simba QT4-10 Automatic Hydraulic Clay Interlocking Lego Brick Making Line

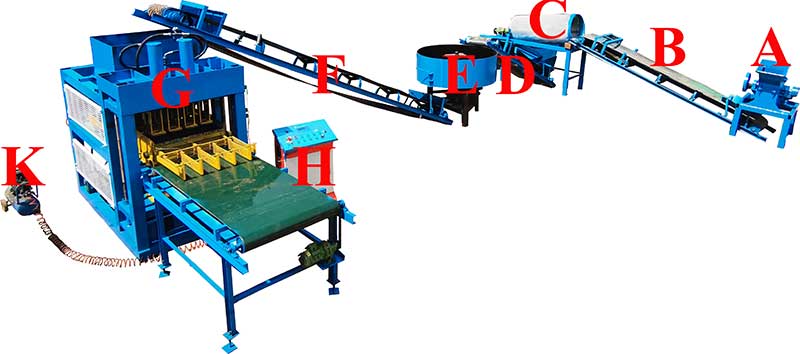

| Number | Item | Function |
| A | Soil Crusher | Crushing soil earth into power |
| B | 3m Belt Conveyor | Carrying crushed soil from Crusher to Screen |
| C | Soil Screen | Filter good soil power |
| D | 3m Belt Conveyor | Carry soil power from Screen to Mixer |
| E | JQ500 Mixer | Mixing raw material and water |
| F | 6M Belt Conveyor | Carrying mixed material to Brick machine |
| G | QT4-10 brick machine | Producing different sizes of interlocking bricks |
| H | Automatic PLC control | Control brick machine work automaticly |
| K | Air compressor | Supply pneumatic power for brick machine |
Production Capacity
Simba QT4-10 automatic hydraulic soil clay interlocking lego brick making machine has different production capacities for different sizes of lego bricks, hydraform blocks, interlocking pavers, earth compressed blocks and ISSB bricks.
| No. | Size of Brick | Production Capacity | Photo of Block |
| 1 | 300*150*100mm | 4 Bricks per Mold 1200 Bricks in one hour 9600 Bricks in 8 Hours |
 |
| 2 | 300*150*100mm | 4 Bricks per Mold 1200 Bricks in one hour 9600 Bricks in 8 Hours |
 |
| 3 | 150*150*100mm | 8 Bricks per Mold 2400 Bricks in one hour 19200 Bricks in 8 Hours |
 |
| 4 | 250*125*75mm | 5 Bricks per Mold 1500 Bricks in one hour 12000 Bricks in 8 Hours |
 |
| 5 | 250*125*75mm | 5 Bricks per Mold 1500 Bricks in one hour 12000 Bricks in 8 Hours |
 |
| 6 | 230*220*115mm | 3 Blocks per Mold 900 blocks in one hour 7200 blocks in 8 hours |
 |
| 7 | 200*100*80mm | 5 pavers per Mold 1500 pavers in one hour 12000 pavers in 8 Hour |
 |
| 8 | 225*112.5*80mm | 5 pavers per Mold
1500 pavers in one hour 12000 pavers in 8 Hou |
 |

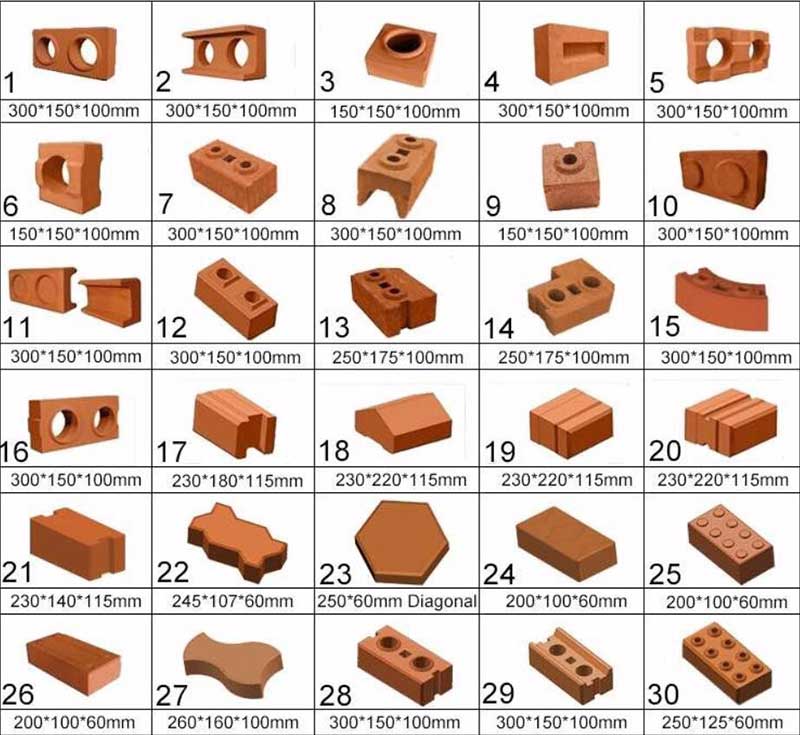

Designs of Blocks, Bricks and Pavers for Your Reference:

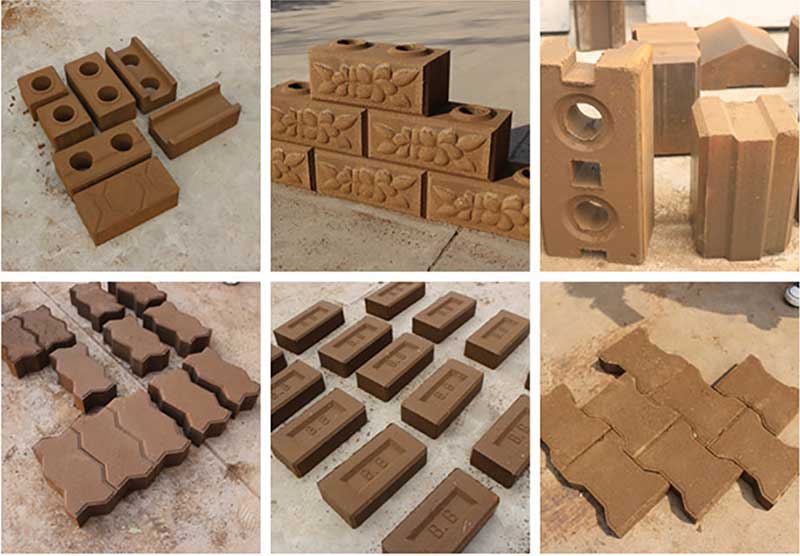

By changing molds, Simba QT4-10 automatic hydraulic soil clay interlocking lego brick making machine can produce different sizes of lego bricks, hydraform block, earth compressed blocks, ISSB bricks, interlocking pavers, ecological bricks,the following are some designs of bricks for your reference.
We also can produce brick molds according to sizes and photos of your bricks.
Technical Information

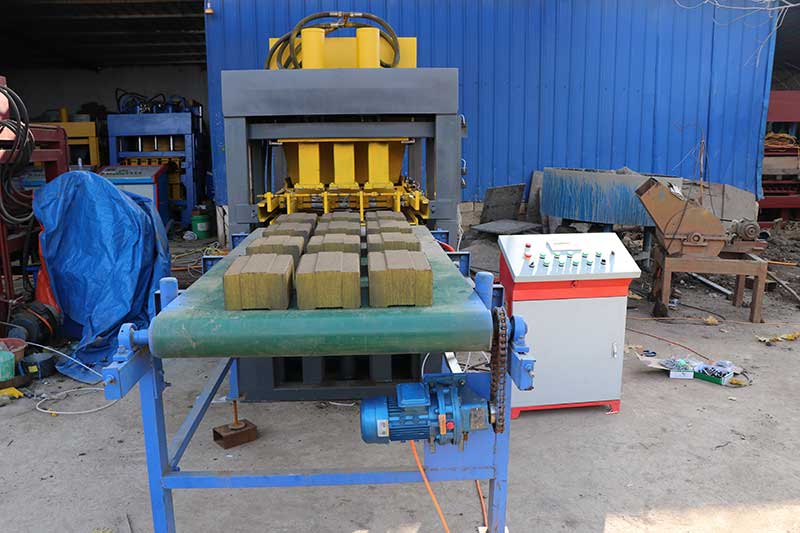

Simba QT4-10 automatic hydraulic soil clay interlocking lego brick making machine
| Model | QT4-10 |
| Hydraulic press | 40 Ton / 21Mpa |
| Power | 11 KW |
| Weight | 2000KGS |
| Machine Size | 2320(L)×1250(W)×2500(H)mm |
| Raw Material | Soil, earth, mud, clay sand, cement |

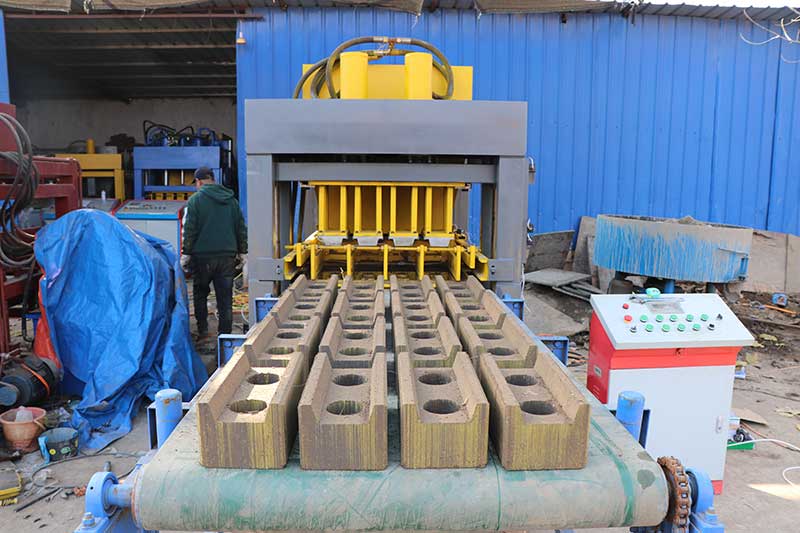

Simba QT4-10 automatic hydraulic interlocking soil brick machine in kenya
Simba QT4-10 automatic hydraulic stabilized interlocking soil brick machine for hydraform blocks

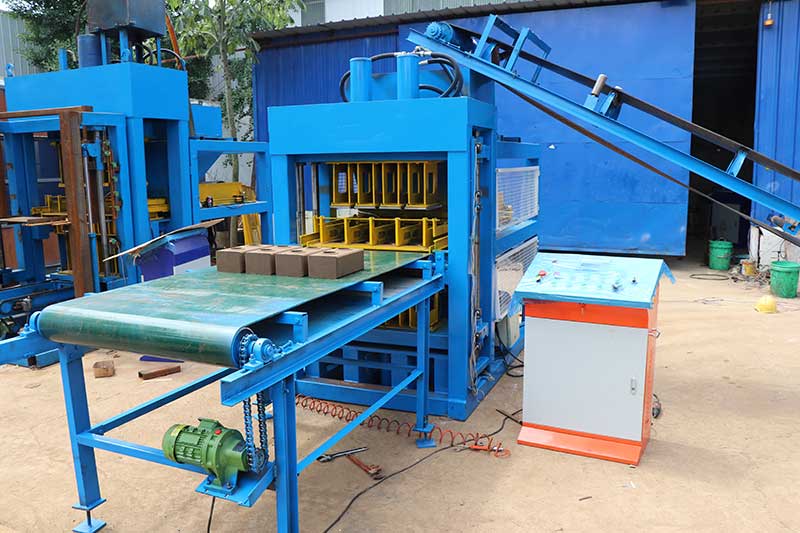

Simba QT4-10 automatic hydraulic compressed earth block making machine

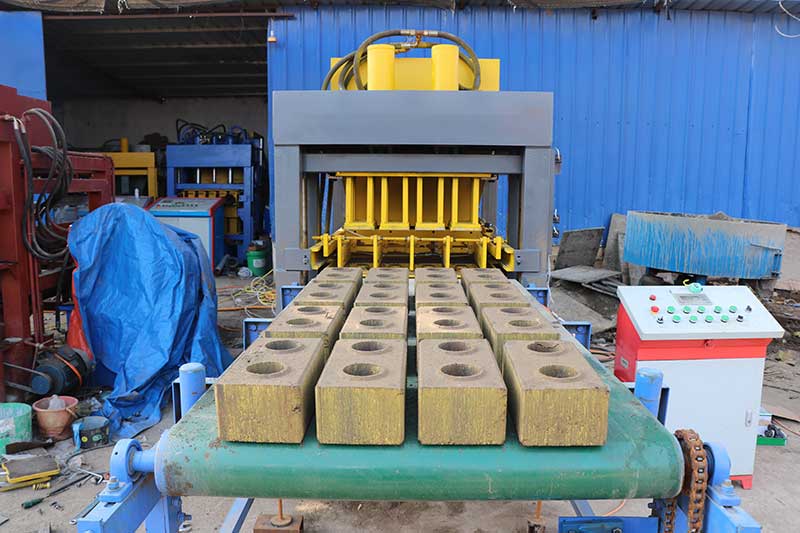

Simba QT4-10 automatic hydraulic soil clay interlocking lego brick making machine

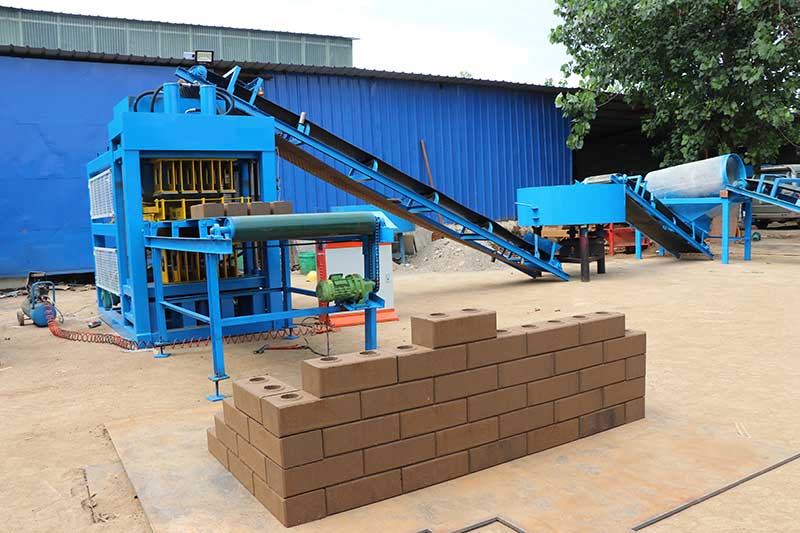

Simba QT4-10 automatic hydraulic soil press block making machine
