Introduction of QMY10-15 Industry automatic hydraulic cement blocks bricks making machine:
| Name | Function | Photo(Click photo, see more) |
| QMY10-15 Automatic mobile block machine | Driving block machine like a car, produce blocks | |
| Block lifter : Optional | Clamp blocks, move blocks, load truck |  |
| 500L Mixer (Diameter 2m) : Optional | Mixing cement, sand, stone for concrete |  |
Technical Information of QMY10-15 mobile hydraulic concrete hollow solid block machine:
| Model No. | QMY10-15 (Like driving a car, produce blocks by automatic hydraulic system) |
| Forming Cycle | 15 Second |
| Vibration Frequency |
4600-5200r/min |
| Vibration Force |
45-50KN |
| Function | Produce sizes hollow blocks, solid blocks, bricks, curbstones, paving bricks by change molds |
| Total Power | 22KW |
| Workers | 1-2 workers |
| Pressure | 16-21mpa |
| Block Machine Size | 3500mm(L)-1900mm(W)-2250mm(H) |
| Host Block Machine Weight | 4800 KGS |
| Advantage | Produce blocks faster and good quality, produce blocks like driving car, see following video |
| Workshop size | 100m length, 60m width, concrete floor is ok |
Production Capacity of QMY10-15 Automatic hydraulic car driving mobile block machine:
GiantLin block machine has different production capacity for different sizes of blocks, paver, curbstone, hourdis.
The following production capacities are for some popular sizes of blocks, bricks, hourdis and interlocking pavers.
| Item No. | Block Size | Production Capacity | Block Photo |
| 1 | Hollow/Solid Block
400-200-200mm (8 inch) |
10 blocks in a mold
2400 blocks per hour; 1920 blocks per 8 hours |

|
| 2 | Hollow/Solid Block
400-150-200mm (6 inch) |
12 blocks in a mold
2880 blocks per hour; 23040 blocks per 8 hours |
|
| 3 | Hollow/Solid Block
400-125-200mm (5 inch) |
14 blocks in a mold
3360 blocks per hour; 26880 blocks per 8 hours |
|
| 4 | Hollow/Solid Block
400-100-200mm (4 inch) |
18 blocks in a mold
4320 blocks per hour; 34560 blocks per 8 hours |
|
| 5 | Hourdis
500-150-200mm |
8 blocks in a mold
1920 blocks per hour; 15360 blocks per 8 hours |
 |
| 6 | Rectangle Paver
200-100-60/80/100mm |
27 blocks in a mold
6480 blocks per hour; 51840 blocks per 8 hours |
 |
| 7 | Curb Stone
1000-150-250mm |
2 blocks in a mold
288 blocks per hour; 2304 blocks per 8 hours |
 |

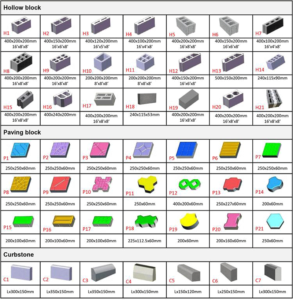

Design of blocks, interlocking paving bricks, curbstones for reference:
